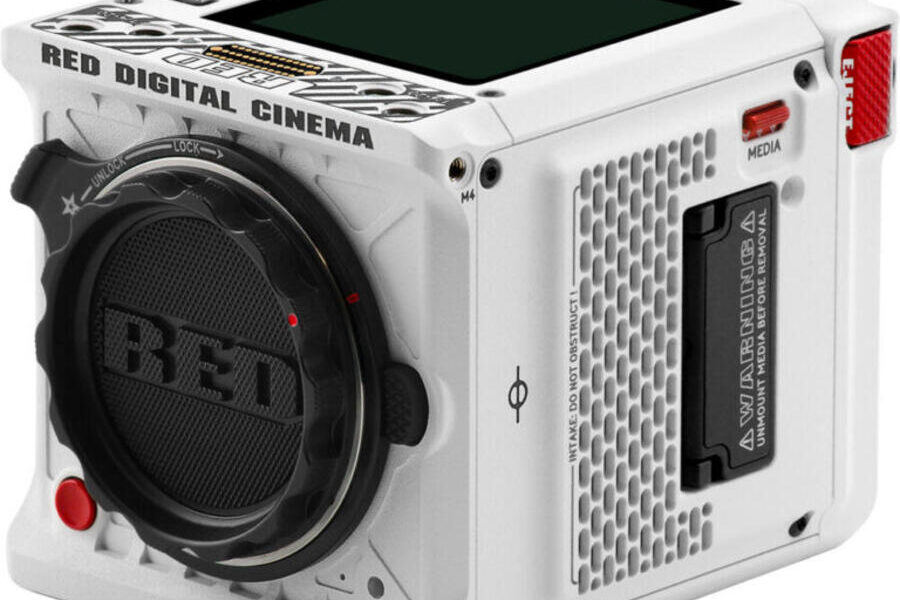

RED DIGITAL CINEMA KOMODO-X ST 6K Digital Cinema Camera Announced, Priced $9,995

RED DIGITAL CINEMA KOMODO-X ST 6K Digital Cinema camera was just officially announced.  With built-in Wi-Fi and a USB-C connector, the KOMODO-X provides a powerful platform for smooth professional capture, multicamera setups, and IP-based workflows, including live streaming.

Retaining the size of the original KOMODO 6K S35 global shutter sensor, RED has redesigned an entirely new sensor for the KOMODO-X to feature even more detail in the shadows, enhance color depth, and double supported frame rates to 6K80 and 4K120 to encourage even more creative cinematography.

The RED Komodo-X ST 6K digital cinema camera is available to order now for $9,995. The limited-edition camera will begin shipping by the end of May at B&HAdorama.

.

RED DIGITAL CINEMA Komodo X Specifications

Imaging
Lens Mount Canon RF
Lens Communication Yes, with Autofocus Support
Sensor Resolution Effective: 19.9 Megapixel (6144 x 3240)
Image Sensor 27.03 x 14.26 mm (Super35) CMOS
Image Stabilization None
Built-In ND Filter None
Capture Type Stills & Video
Exposure Control
Shutter Type Electronic Global Shutter
Advertised Dynamic Range 16.5 Stops
Video Capture
Internal Recording Modes ProRes 4444XQ 4:4:4
4096 x 2160 up to 60.00 fps
ProRes 4444 4:4:4
4096 x 2160 up to 80 fps
ProRes 422/ProRes 422 HQ/ProRes 422LT
4096 x 2160 up to 120 fps
REDCODE RAWREDCODE HQ/REDCODE LQ/REDCODE MQ
6144 x 3240 up to 80 fps [560 Mb/s]
5120 x 2700 up to 96 fps [560 Mb/s]
4096 x 2160 up to 120 fps [560 Mb/s]
2048 x 1080 up to 240 fps [560 Mb/s]
External Recording Modes None
Fast-/Slow-Motion Support Yes
Built-In Microphone Type Stereo
Audio Recording 2-Channel 24-Bit 48 kHz
IP Streaming None
Still Image Capture
Aspect Ratio 16:9
Interface
Media/Memory Card Slot Single Slot: CFexpress Type B (CFexpress 2.0)
Video I/O 1 x BNC (12G-SDI) Output
Audio I/O 1 x LEMO 5-Pin Line Input on Camera Body
Power I/O 1 x LEMO 6-Pin (11 to 17VDC) Input
Other I/O 1 x 9-Pin (Genlock, GPI, Timecode)
1 x USB-C (Camera Interface) Control/Data/Video Input/Output
1 x RED Cable-Free Monitor Connection Output
Wireless 2.4 / 5 GHz Wi-Fi 5 (802.11ac) Video Output, Control
Mobile App Compatible Yes: Android & iOS
App Name: RED Control
Functionality: Remote Control
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Global Positioning (GPS, GLONASS, etc.) None
Monitor
Size 2.9″
Resolution 1440 x 1440
Display Type Fixed Touchscreen LCD
Viewfinder
Type Optional, Not Included
Focus
Focus Type Auto and Manual Focus
Focus Mode Automatic, Manual Focus
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 122°F / -20 to 50°C
Storage Humidity 0 to 85% (Non-Condensing)
General
Battery Type V-Mount
Tripod Mounting Thread 1/4″-20 Female (Bottom)
3/8″-16 Female (Bottom)
Netflix Approved Yes
Material of Construction Aluminum
Dimensions (W x H x D) 5.09 x 3.99 x 3.75″ / 129.37 x 101.26 x 95.26 mm
Weight 2.62 lb / 1.19 kg (Body Only)
