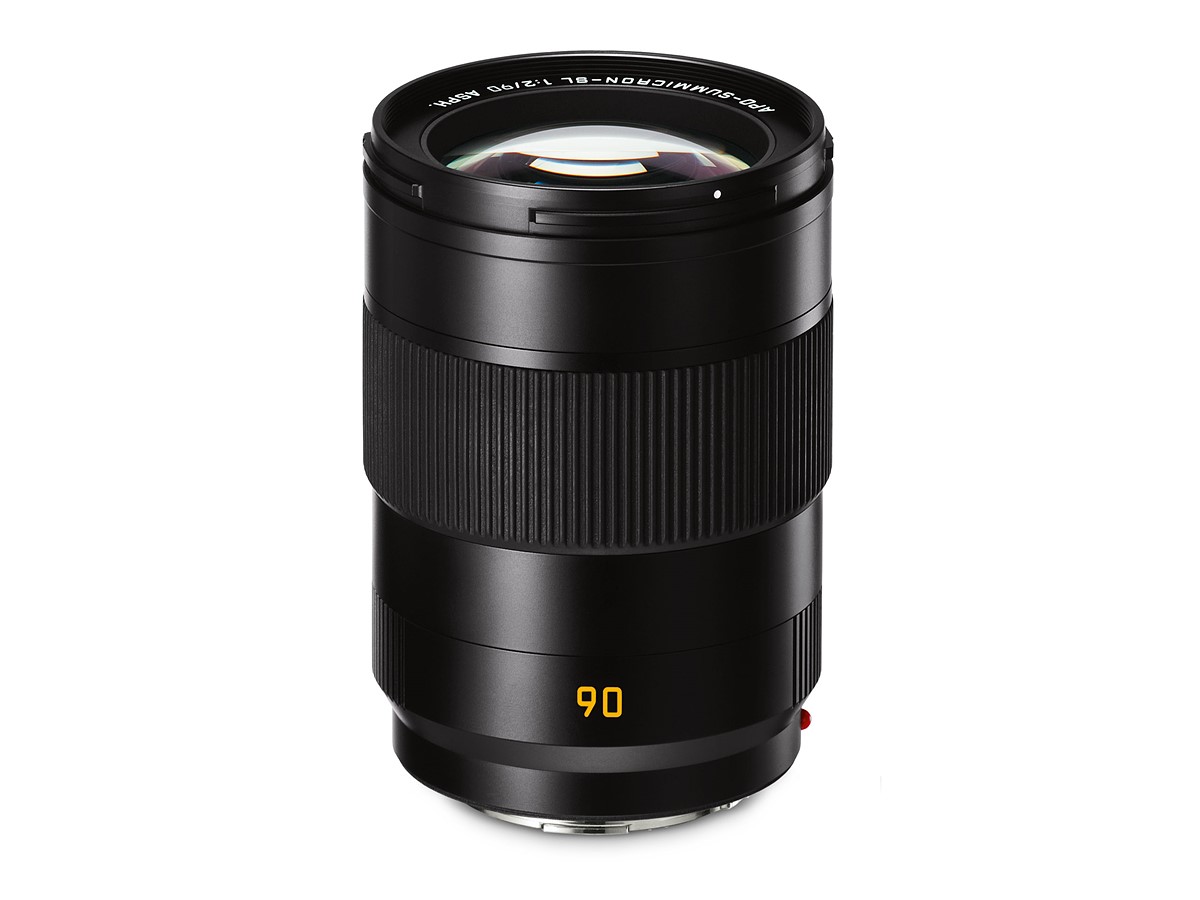

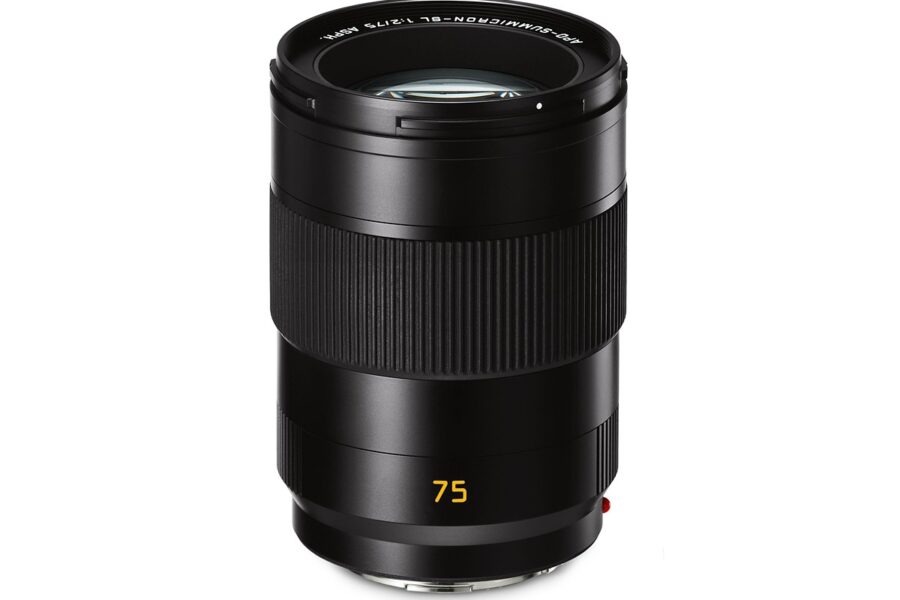

Leica officially announces the APO Summicron-SL 75mm f/2 and 90mm f/2 ASPH short telephoto lenses for its SL full-frame mirrorless camera.
The APO-Summicron-SL 75mm and 90mm F2 ASPH lenses feature an apochromatic design to reduce chromatic aberration, a single aspherical element and minimum focusing distances of 0.5 and 0.6 meters, respectively. Both lenses have a maximum magnification of 0.2X and have a ‘Dual Synchro Drive’ focusing system which can traverse the entire focal range in 250ms, according to Leica.
The 75mm and 90mm lenses have the exact same dimensions (73 x 102mm) and filter diameter (67mm) and nearly the same weight (700 vs 720 grams). Both are sealed against dust and moisture.
In the USA the APO-Summicron-SL 75mm f/2 ASPH. and the APO-Summicron-SL 90mm f/2 ASPH. will start shipping from February. The 75mm model will retail for $4750 while the 90mm will set you back $5150. In the second half of 2018, Leica will launch two more lenses, the Summicron-SL 35 mm f/2 ASPH. and APO-Summicron-SL 50 mm f/2 ASPH.
Leica APO Summicron-SL 75mm f/2 and 90mm f/2 ASPH lenses announced
Technical specifications:
| APO-Summicron-SL 75 mm f/2 ASPH. | APO-Summicron-SL 90 mm f/2 ASPH. | |
| Angle of view(diagonal, horizontal, vertical) | 31.8°/26.7°/18.0° | 27.3 / 22.9 / 15.4 ° |
| Optical design | ||
| Number of elements/groups | 11/9 | 11/9 |
| Number of asphericals | 1 | 1 |
| Position of entrance pupil in front of the bayonet flange | 35.4 mm | 22.9 mm |
| Focusing | ||
| Working range | 0.5 m to infinity | 0.6 m to infinity |
| Smallest object field | 120 × 180 mm | 120 × 180 mm |
| Largest reproduction ratio | 1:5 | 1:5 |
| Aperture | ||
| Settings/functions | Electronically controlled iris, setting with the camera clickwheel control, half-stop settings possible | Electronically controlled iris, setting with the camera clickwheel control, half-stop settings possible |
| Aperture setting range | 2 – 22 | 2 – 22 |
| Smallest aperture | 22 | 22 |
| Bayonet/sensor format | Leica L-bayonet, full-frame 35 mm format | Leica L-bayonet, full-frame 35 mm format |
| Filter thread | E67 | E67 |
| Dimensions and weight | ||
| Length to bayonet flange | 102 mm | 102 mm |
| Largest diameter | 73 mm | 73 mm |
| Weight | 720 g | 700 g |
Leica Camera Unveils New Prime Lenses for the Leica SL-System
The new APO-Summicron-SL 75 mm f/2 ASPH and APO-Summicron SL 90 mm f/2 ASPH lenses embody superior performance and the finest engineering in compact designs
January 15, 2018 – Today, Leica Camera announces the first two editions of a new line of high-performance Summicron-SL lenses for the Leica SL-System; the APO-Summicron-SL 75 mm f/2 ASPH. and the APO-Summicron-SL 90 mm f/2 ASPH. that will be available in February for photographers across the country. Both lenses seamlessly work with the SL-System’s lightning-fast autofocus and, as with all SL-Lenses, have been designed and constructed in Germany with exceptional materials for a long work life, even withstanding the rigors of professional use while always providing superior image quality.
The focal lengths of these two SL-Lenses are ideal for all types of photography, and truly shine when used for portraiture. While the APO-Summicron-SL 75 mm f/2 ASPH., for example, captures exceptional natural portraits, the APO-Summicron-SL 90 mm f/2 ASPH. is a classic telephoto focal length for portraits with the often sought-after compression between the subject and background, ultimately creating the ideal aesthetic for exquisite pictures of people. Another great feature of these new lenses is their fast and silent autofocusing, meaning the photographer does not have to wait to take the perfect shot to quickly capture their subject’s best look, even for a moment.
Both the construction and design of the new, cutting-edge Summicron-SL line represent the continuing innovation in the development of lenses for the Leica SL-System. State-of-the-art, extremely precise manufacturing methods and measuring technologies were developed specifically for the production of these lenses. The results of these developments are reflected not only in the more compact dimensions and considerably lower weight of the lenses, allowing for greater portability, but also in their excellent imaging performance. As the Leica SL-System continues to evolve with new capabilities and lens options, the addition of these two primes further round out the Leica SL native lens selection, which now encompasses two zoom lenses and three prime lenses. Current Leica SL customers continue to receive new lens options at their disposal that can bolster their current capabilities, and new users have more selection than ever before.
Additionally, these lenses feature a new, faster autofocus system, as well as a considerably shorter close focusing limit for tight portraits of their subjects. The autofocus drive of all Summicron-SL lenses employs extremely powerful and robust stepping motors with DSD® (Dual Syncro Drive™). Thanks to this advanced focusing drive, the entire focusing range can be fully travelled in only around 250 milliseconds, providing photographers the confidence that they will always be able to instantaneously capture their subjects in crystal-clear sharp focus.
As both Summicron-SL primes deliver extremely high imaging performance at their largest f/2 aperture, the lenses are also ideal for photography in low-light or difficult lighting conditions. The Leica promise of ‘maximum aperture is a usable aperture’ also applies to the new SL-Lenses. Users can rest assured that their lens is capable of creating a tack-sharp photograph in any situation. Meticulous attention was paid to the prevention of stray light and reflections in the construction of the APO-Summicron-SL lenses. Together with optimizing the optical and mechanical design, the application of high-quality coatings to each lens surface reduces unavoidable reflections to an absolute minimum. Thus, photographers get a lens that always creates images with beautifully strong contrast, where other lenses may suffer from distracting flares and ghosting effects that detract from the photo.
All glass elements in any optical imaging system, including camera lenses, can sometimes refract certain colors of light at different lengths. Thus, not all rays of light from a multi-colored subject are always focused at the same point – the result of this imperfection is chromatic aberration, also known as color fringing. In order to reduce chromatic aberration to a hardly perceptible minimum, both new Summicron-SL lenses are Apochromatic, or in short, APO, corrected, allowing photographers to capture photos in high contrast situations without a distracting purple or green outline along backlit subjects. Further supporting this optical achievement, most of the eleven elements of the optical system, one of which is aspherical, feature anomalous partial dispersion and are manufactured from sensitive and specially formulated, high-quality glass. Without all of these state-of-the-art lens corrections, images could suffer from fringing, flares, ghosting or distortion. These incredibly well-corrected glass optics are what make a Leica lens special and so crystal clear.
The APO-Summicron-SL 75 mm f/2 ASPH. and the APO-Summicron-SL 90 mm f/2 ASPH. will be available in February. Both can be purchased at Leica Stores, Boutiques and Dealers. In the second half of 2018, the SL-System will even further increase its prime lens arsenal with the launch of a Summicron-SL 35 mm f/2 ASPH. and APO-Summicron-SL 50 mm f/2 ASPH.
