The Xenon FF-Prime Cine-Tilt line-up comprises focal lengths of 25mm, 35mm, 50mm, 75mm and 100mm. Designed for Sony E-mount cameras, they all feature a maximum aperure of T2.1. The lenses will be available by the Spring of 2017. Pricing to be confirmed.
The new Xenon FF-Prime Cine-Tilt lenses combine a similar form factor and capabilities as the company’s popular full-frame primes with an added tilt function up to ±4°. By sustaining the field of view during focus and tilt actions, the new cine-tilt design means that previously unimaginable images can be taken by moving and tilting the focus plane.
Designed and built in Germany, the new design incorporates sophisticated mechanics for smooth and accurate tilt action. The tilt of the lens is controlled via a high-precision ring with 120° rotation that is as intuitive to operate as pulling focus. The Cine-Tilt can be used with standard follow-focus systems with the common 0.8 module gear.

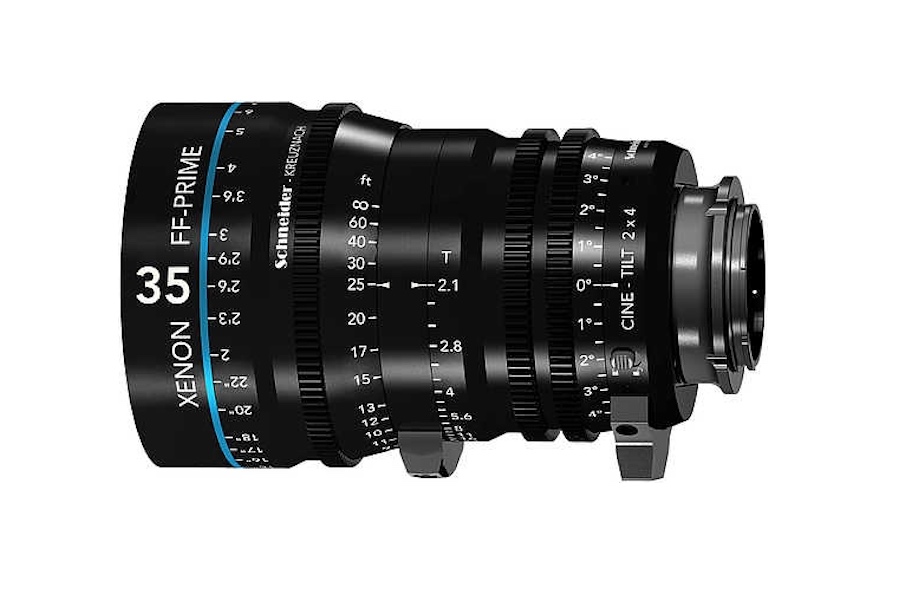

New Xenon FF-Prime Cine-Tilt Lenses from Schneider-Kreuznach
World’s first Full Frame Cine Primes to offer dynamic Tilt functionality
To enhance today’s dynamic cinematography, Schneider-Kreuznach introduces Xenon FF-Prime Cine-Tilt lenses. This groundbreaking new version combines similar form-factor and capabilities of the company’s popular Full-Frame Primes with added tilt function up to ±4°. By sustaining the field of view during focus and tilt actions, the new Cine-Tilt design makes possible previously unimaginable images from the freely moving and tilting focus planes. The new lenses offer the potential to utilize out-of-focus areas in the frame, especially when tilt is used with large apertures. A 4° tilt angle at the sensor plane corresponds to an 80° focal plane, which varies according to the focal length and aperture setting selected.
Like Schneider’s standard Xenon FF-Primes, the new version answers today’s practical needs yielding full-frame imagery, beyond 4K, in a lightweight and compact, uniform dimension package. The color-matched lenses feature minimized breathing and a bokeh reminiscent of classic Hollywood. Designed and built in Germany, the new design provides sophisticated mechanics for smooth and accurate tilt action. The lens’ tilt is controlled via a high precision ring with 120° rotation that is as intuitive to operate as pulling focus. Due to the common 0.8 module gear, the Cine-Tilt is usable with standard follow-focus systems.
Cine-Tilt lenses offer the multifold benefits of standard Xenon FF-Primes plus tilt functionality, so there’s is no need to swap out lenses during a shot. With the tilt set at 0° the Cine-Tilt lenses provide identical images as the standard FF-Primes. The consistent set comprises focal lengths of 25mm, 35mm, 50mm, 75mm and 100mm – all at T2.1.
More information can be found at Schneider Optics website.
