Nikon Patent for 10-50mm f/3.5-5.6 VR Lens

By on

Nikon has filed a new patent in Japan for a standard zoom lens for CX-mount mirrorless cameras.

The new patent describes Nikon 10-50mm f/3.5-5.6 VR lens designed for mirrorless cameras with 1-inch-type sensors.

If it becomes available on the market, the Nikon 10-50mm f/3.5-5.6 VR lens would be a great choice for kit option. The lens will probably be the same price as the f/3.5-5.6 model or maybe a little bit higher for its possible advanced features.

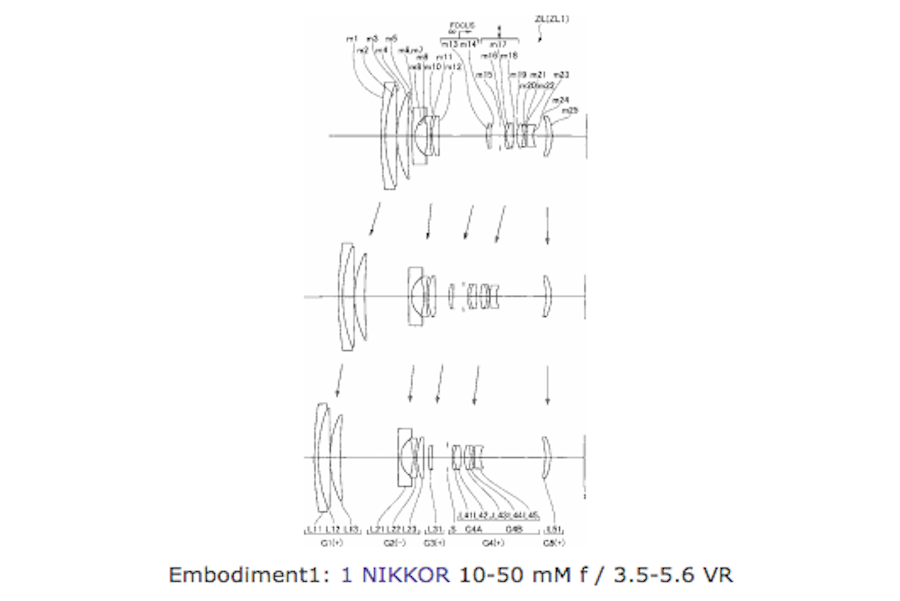

Nikon 10-50mm f/3.5-5.6 VR Lens Patent

nikon-patent-for-10-50mm-f3-5-5-6-vr-lens

Description, self-interpretation of the patent literature

  • Patent Publication No. 2015-206890
    • Published 2015.11.19
    • Filing date 2014.4.21
  • Example 1
    • Zoom ratio 4.71
    • Focal length f = 10.29845 32.00216 48.49978
    • FNO 3.60 5.06 5.79
    • ω 39.76047 13.63173 9.16599
    • Y 8.00
    • φ 7.80 8.30 8.30
    • TL 79.34243 95.80944 105.57918
    • BF 13.25602

via Egami
