Voigtländer 10mm f/5.6, 12mm f/5.6 and 15mm f/4.5 Wide Heliar Lens Specifications

Voigtländer published additional information on the three new Sony-E-Mount lenses which could be used on Sony full-frame mirrorless cameras without an adapter.

The three native full-frame Sony E-mount lenses were announced a week ago and will be available in Spring 2016.

The lenses are covering an extreme wide angle range and are the 10mm F5,6 Hyper-Wide-Heliar12mm F5,6 Ultra-Wide-Heliar15mm F4,5 Super-Wide-Heliar models.

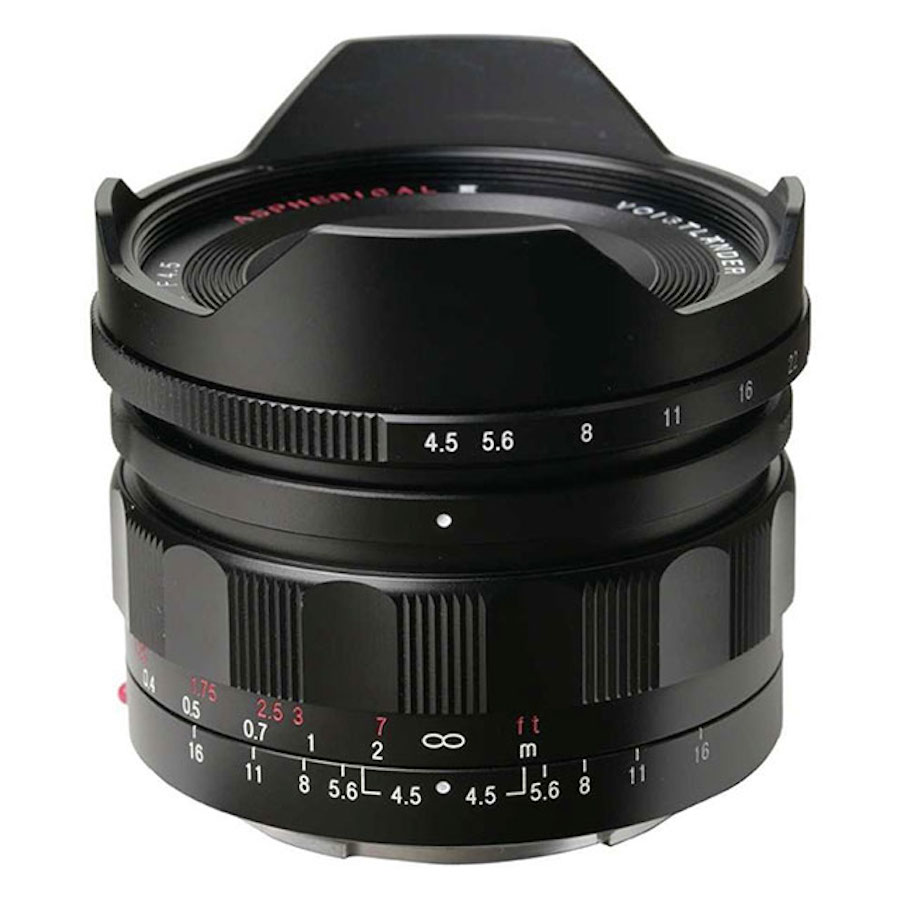

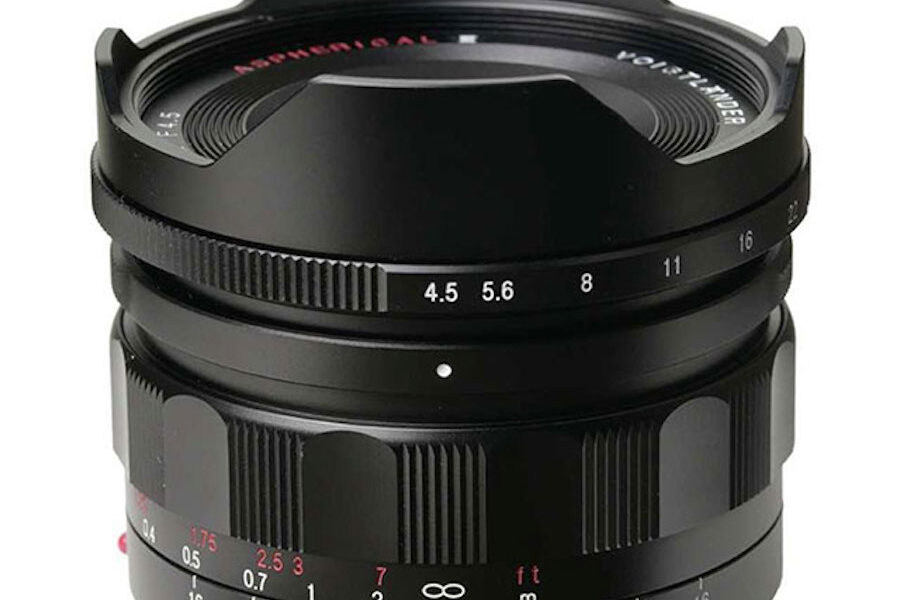

Voigtländer 15mm f/4.5 Super Wide Heliar aspherical lens (E-mount)

Focal length used on full format camera body 15 mm
Aperture ratio 1:4,5
Minimum aperture F 22
Click-stop 1/3
Lens construction 11 elements in 9 groups
Angle of view 110°
Aperture blade 10
Minimum focus 0,3 m
Maximum diameter 66,4 mm
Length 67,5 mm
Mount Sony E
Electrical contact: Exif data transfer from lens to camera body for lens correction available
Manual focus assistant available
Weight 294 g
Filter size 58 mm
Color black
Others Lens hood (non-detachable), 58 mm clip cap, Selective aperture control system

Voigtländer 12mm f/5.6 Ultra Wide Heliar aspherical lens (E-mount)

Focal length used on full format camera body 12 mm
Aperture ratio 1:5,6
Minimum aperture F 22
Click-stop 1/3
Lens construction 12 elements in 10 groups
Angle of view 121°
Aperture blade 10
Minimum focus 0,3 m
Maximum diameter 67,4 mm
Length 74,3 mm
Mount Sony E
Electrical contact: Exif data transfer from lens to camera body for lens correction available
Manual focus assistant available
Weight tbd
Filter size n/a
Color black
Others Lens hood (non-detachable), Pressure fit cap, Selective aperture control system

Voigtländer 10mm f/5.6 Hyper Wide Heliar aspherical lens (E-mount)

Focal length used on full format camera body 10 mm
Aperture ratio 1:5,6
Minimum aperture F 22
Click-stop 1/3
Lens construction 13 elements in 10 groups
Angle of view 130°
Aperture blade 10
Minimum focus 0,3 m
Maximum diameter 67,8 mm
Length 73,8 mm
Mount Sony E
Electrical contact: Exif data transfer from lens to camera body for lens correction available
Manual focus assistant available
Weight 371 g
Filter size n/a
Color black
Others Lens hood (non-detachable), Pressure fit cap, Selective aperture control system
