Zeiss Loxia 35mm f/2 and 50mm f/2 Lenses Full Specifications Leaked

By on

More images of the upcoming Zeiss Loxia 35mm f/2.0 and 50mm f/2.0 lenses have been leaked on the web along with full specifications list.

Zeiss will announce the new series of Loxia lenses most likely on September 1 or 2. As previously mentioned the first Zeiss Loxia prime lenses will be a 35mm f/2.0 and 50mm f/2.0 aimed at Sony E-mount mirrorless cameras with full frame image sensors.

After the official announcement of the first two Zeiss Loxia lenses, three more are expected to be announced in the next 6-12 months. Here are the full specifications of Zeiss Loxia 35mm f/2.0 and 50mm f/2.0 lenses with more images.

Zeiss Loxia 35mm f/2 and 50mm f/2 Lenses Full Specifications Leaked

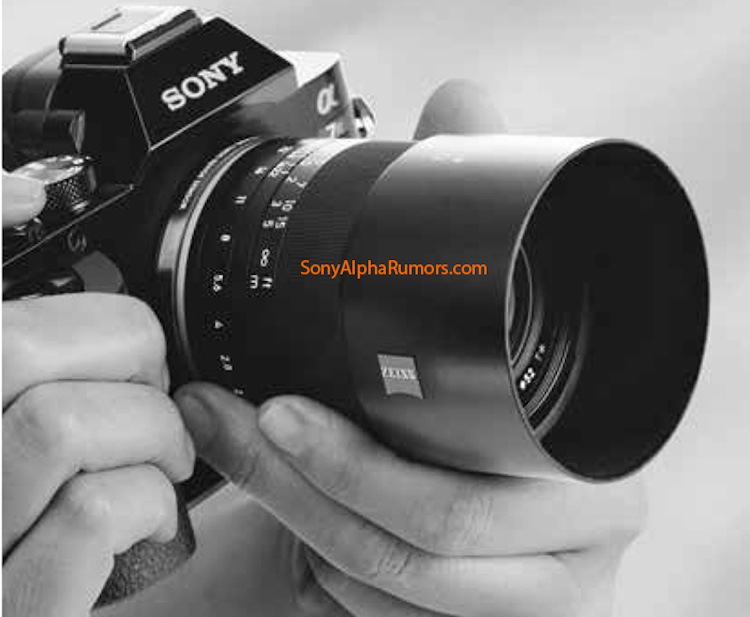

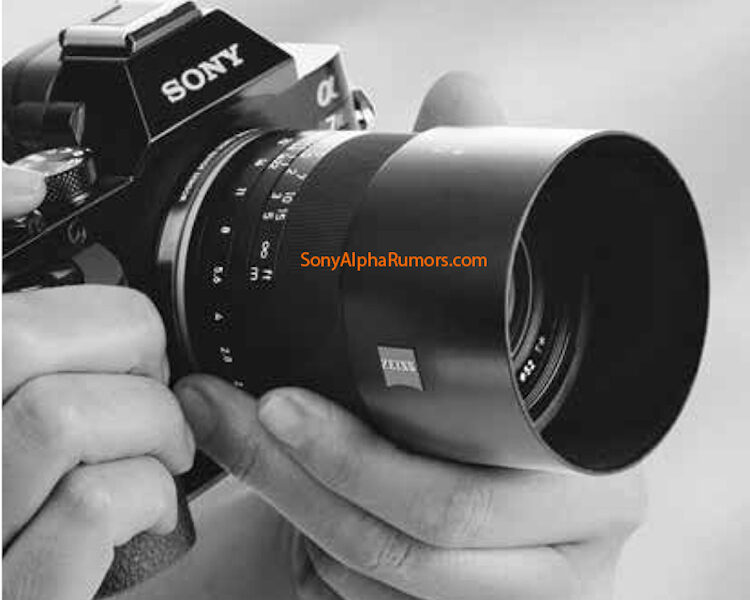

zeiss-loxia-35mm-50mm-f2-images-leaked

Zeiss Loxia 35mm f/2 Specifications

  • Aperture range: f/2.0–f/22
  • Elements/groups: 9/6
  • Focusing range m/ft: 0.30–∞/0.98–∞
  • Field angle* (diag./horiz./vert.):  63°/54°/37°
  • Coverage** mm/inch: 210.2 x 139.4/8.28 x 5.49
  • Length  mm/inch: 66/2.6
  • Diameter  mm/inch (max.): 62.1/2.44
  • Weight* g/oz: 340/12
  • Filter thread: M 52 x 0.75

From the Official Zeiss press text:

Loxia lenses from ZEISS are perfectly suited to the many strengths of Sony α7 series cameras. Add to that their compact size and low weight, and you have a series of lenses you can use just about anywhere for high quality photographs and films.

Zeiss Loxia 50mm f/2 Specifications

  • Aperture range: f/2.0–f/22
  • Elements/groups: 6/4
  • Focusing range m/ft: 0.45–∞/1.48–∞
  • Field angle* (diag./horiz./vert.):  46.78°/39.38°/26.70°
  • Coverage** mm/inch: 255.1 x 168.3/10.04 x 6.63
  • Length  mm/inch: 66.2/2.6
  • Diameter  mm/inch (max.): 62.1/2.44
  • Weight* g/oz:
  • 320/11.29
  • Filter thread: M 52 x 0.75

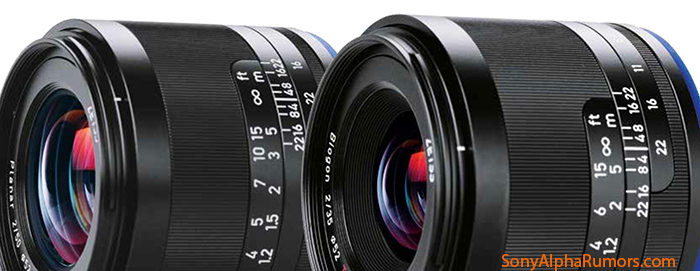

zeiss-loxia-35mm-50mm-f2-specifications-leaked

High precision

  • Precise and durable construction, low weight.
  • The functionality of the Loxia lenses is perfectly matched with the camera functions of the Sony α7-series.

Perfect for photography and video

  • High quality images thanks to proven optical design.
  • Automatic activation of the magnification function when turning the focus ring.
  • Optional switchable aperture lock, allowing for smooth adjustment in video mode.
  • Consistent 180° focus rig rotation for all lenses in the series.

High quality construction

  • Robust, all-metal construction for many years of use.
  • Grippy focus ring for fine manual adjustment.
  • A special gasket at the mount protects the connection between camera and lens.

Both the Zeiss Loxia 35mm f/2 and 50mm f/2 are manual focusing lenses and will have a physical aperture ring and electronic aperture control. The new Zeiss Loxia lenses will be displayed at Photokina 2014 for Sony FE full-frame mirrorless cameras.
