Tamron 28-300mm F/3.5-6.3 Di VC PZD Officially Announced

Tamron has officially annunced the 28-300mm F/3.5-6.3 Di VC PZD (Model A010) superzoom lens for full frame SLRs.

Tamron has introduced the 16-300mm f/3.5-6.3 Di II VC PZD lens for APS-C sensored cameras in early 2014. Now, the Tamron 28-300mm F/3.5-6.3 Di VC PZD lens becomes official aimed at cameras with full frame sensors.

The Tamron 28-300mm f/3.5-6.3 Di VC PZD lens features a Piezo Drive auto focus motor and Vibration Compensation technology (VC), a maximum reproduction ratio of 1:3.5, and a minimum focus distance of 0.49m and a 67mm filter thread. The lens has a design of 19 elements in 15 groups. The lens comes with a petal-shaped lens hood.

The lens will be available in Canon and Nikon mounts on June 26th with a price tag for $849.

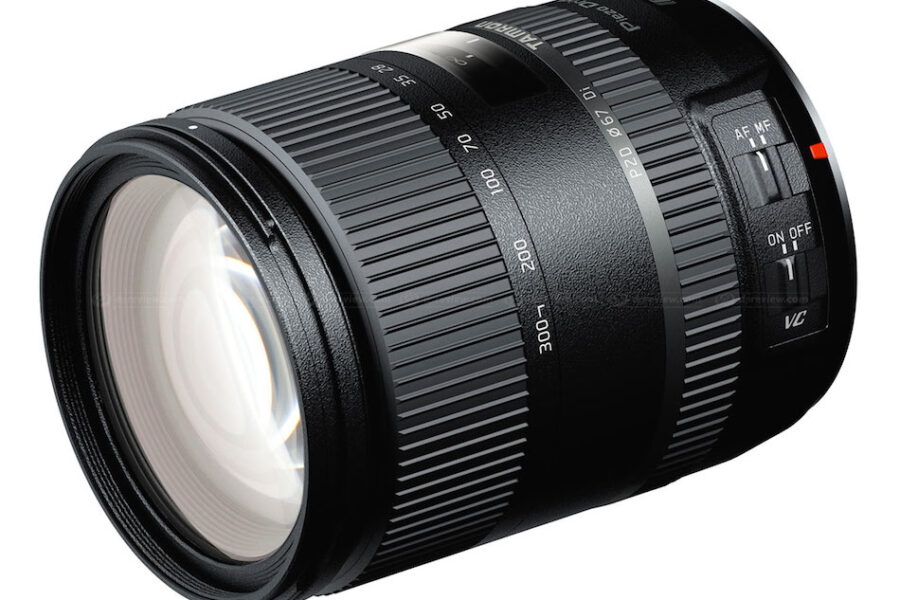

Tamron 28-300mm F/3.5-6.3 Di VC PZD Officially Announced

tamron-28-300mm-f3-5-6-3-di-vc-pzd

Press Release:

TAMRON LAUNCHES AN ADVANCED NEW ALL-IN-ONE™ WIDE-ANGLE TO TELEPHOTO ZOOM LENS FOR FULL-FRAME DSLR CAMERAS: 28-300MM F/3.5-6.3 DI VC PZD (MODEL A010)

June 19, 2014, Commack, NY – Tamron USA, Inc.  has announced the delivery date of the anticipated 28-300mm F/3.5-6.3 Di VC PZD (Model A010), an advanced new All-In-One™ zoom lens for full-frame DSLR cameras. The lens will be available in the U.S. in both Canon and Nikon mount (Sony mount availability to be announced) on June 26, 2014 at $849.Innovative All-In-One™ zoom integrates state-of-the-art optical design, PZD (Piezo Drive)*1 and Tamron’s exclusive VC (Vibration Compensation)*2 system to achieve superb image quality in a remarkably compact, lightweight package

Since the launch in 1992 of the 28-200mm (Model 71D) high-power zoom lens – which featured a revolutionary compact, lightweight design – Tamron has been continually expanding its portfolio of world class optics to benefit consumers. Having revolutionized the optical design of the previous 28-300mm (Model A20), Tamron developed a powerful new, high-power zoom lens for full-frame DSLR cameras that enhances image quality and incorporates the PZD (Piezo Drive)-a standing-wave ultrasonic motor system optimized for swift, quiet AF-and the acclaimed VC (Vibration Compensation) mechanism in an amazingly compact configuration.

Featuring a new, sophisticated external finish, this lens complements the performance and style of full-frame DSLRs, while delivering the practical advantages of an All-In-One™ zoom lens.

Product Highlights

1.  State-of-the-art optical design technology delivers superior image quality

The advanced optical construction of this lens includes four elements of LD (Low Dispersion) glass, three Molded-Glass Aspherical elements, one Hybrid Aspherical element, one XR (Extra Refractive Index) glass element, and one element of UXR (Ultra-Extra Refractive Index) glass, which has greater refractive index than XR. The full use of specialized glass elements in its design contributes to making this outstanding lens as compact and lightweight as possible, while minimizing aberrations, resulting in superior image quality. Particularly impressive is the thorough compensation of chromatic aberrations at the telephoto end, yielding images of enhanced clarity and crispness.

2.  Focus on portability – The lens is now even smaller and lighter

In addition to state-of-the-art optical design that facilitates downsizing of the lens body, the mechanical design, which incorporates a highly sophisticated multi-stack-cam layout that takes up far less space, and PZD (Piezo Drive), an autofocus drive system with a simpler, more compact structure, has made it possible to reduce the overall dimensions of this lens compared to the existing Tamron 28-300mm (Model A20). These technologies are the fruit of Tamron’s more than 20 years of research and development in the high-power zoom lens field.

3.  Advanced anti-reflection coating

The application of BBAR (Broad-Band Anti-Reflection) coatings for suppressing reflections on lens element surfaces minimizes unwanted flare and ghosting to deliver sharp, crisp, high-contrast images.

4.  Upgraded cosmetic design – Elegant tungsten silver brand ring

Tamron has upgraded the cosmetic design and finish of this lens to create a more sophisticated, high-end look in keeping with the demands of discerning full-frame DSLR users. Employing a sophisticated linear pattern rubber grip on the zoom and focus rings and an elegant tungsten silver name-brand ring, this newly designed model accentuates its visceral presence with understated elegance and class.

5.  PZD (Piezo Drive) delivers faster, quieter autofocus action

The PZD (Piezo Drive)*¹, a standing-wave ultrasonic motor system, delivers faster, quieter, more precise action when the autofocus is engaged. The full-time manual focus system is easy and intuitive, enabling quick and convenient manual focus at any time.

6.  VC (Vibration Compensation)

Tamron’s acclaimed VC (Vibration Compensation)*² mechanism reduces image blur caused by camera shake to deliver significantly sharper images even when shooting handheld.*³

7.  Circular diaphragm facilitates achieving spectacular blur effects

Using a circular diaphragm*4, this lens achieves spectacular background blur effects that enable creative use of depth of field.

8.  Moisture-resistant construction for outdoor shooting

Moisture-resistant construction helps prevent moisture from penetrating the lens.

*¹  PZD (Piezo Drive) is a standing-wave type ultrasonic motor system developed by Tamron. It delivers outstanding speed and quiet operation in the AF mode. It also provides greater flexibility in design compared with ring-type ultrasonic motors, thus contributing to reduced lens size.
*²   VC (Vibration Compensation) is Tamron’s proprietary tri-axial image stabilization mechanism.
*³   The Sony mount model does not include VC, since the bodies of Sony DSLR cameras include built-in image stabilization functionality. The name of the Sony mount model is “28-300mm F/3.5-6.3 Di PZD” without the VC designation.
*4   This circular diaphragm retains a nearly circular shape even at two stops down from its maximum aperture.

Tamron 28-300mm F/3.5-6.3 Di VC PZD specifications

Lens type Zoom lens
Max Format size 35mm FF
Focal length 28–300 mm
Image stabilisation Yes
Lens mount Canon EF, Nikon F (FX), Sony/Minolta Alpha
Maximum aperture F3.5 – F6.3
Minimum aperture F22.0 – F40.0
Number of diaphragm blades 7
Aperture notes Circular diaphragm
Elements 19
Groups 15
Minimum focus 0.49 m (19.29″)
Maximum magnification 0.29×
Autofocus Yes
Motor type Ultrasonic
Full time manual Yes
Focus method Internal
Distance scale Yes
Weight 540 g (1.19 lb)
Diameter 74 mm (2.93″)
Length 96 mm (3.78″)
Zoom method Rotary (extending)
Zoom lock Yes
Filter thread 67 mm
Hood supplied Yes
Notes Sony version will not have image stabilisation, and will be called “Tamron 28-300mm F/3.5-6.3 Di PZD”
