Fujifilm Announced XF 18-135mm F3.5-5.6 R LM OIS WR Weather-Resistant Lens

Fujifilm has officially announced the Fujinon XF 18-135mm F3.5-5.6 R LM OIS WR zoom lens.

Fujifilm’s new XF 18-135mm F3.5-5.6 R LM OIS WR is the first weather-resistant lens and designed to match the high-end X-T1 mirrorless camera.

The weather-resistant zoom lens offers a versatile 27-200mm equivalent zoom range and claims to have the world’s most advanced image stabilisation system which uses high precision gyro sensors to give a claimed 5 stop benefit.

It also has an air ventilation system to help prevent dust being sucked into the lens by the zoom operation. See XF 18-135mm F3.5-5.6 R LM OIS WR lens price, specifications, press text and product images below.

Fujifilm Announced XF 18-135mm F3.5-5.6 R LM OIS WR  Weather-Resistant Lens

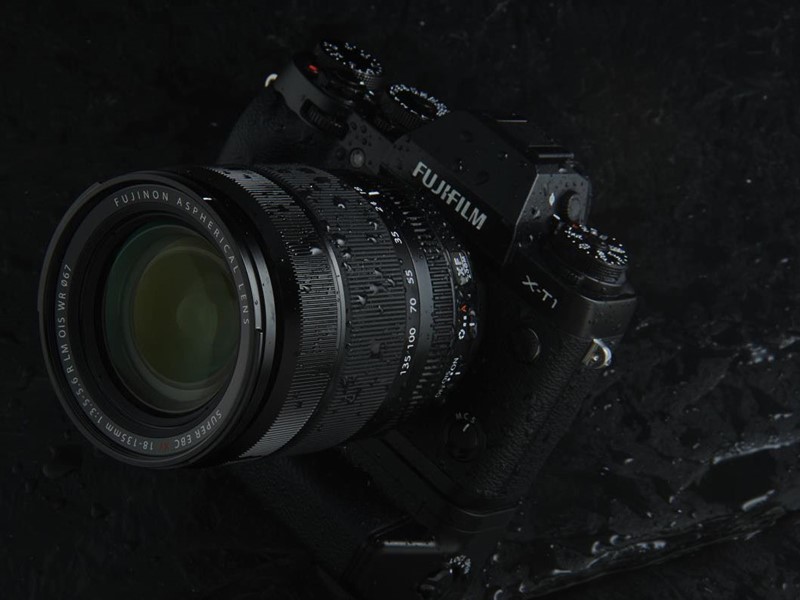

fujifilm-xf-18-135mm-f3-5-5-6-r-lm-ois-wr-00

Fujifilm XF 18-135mm F3.5-5.6 R LM OIS WR Price

The XF 18-135mm F3.5-5.6 R LM OIS WR Lens price is $899.00. The weather-resistant zoom lens will be available from July, 2014.

Buy XF 18-135mm F3.5-5.6 R LM OIS WR Lens
Fuji XF 18-135mm F3.5-5.6 R LM OIS WR $899.00 Amazon | Adorama

Fujifilm XF 18-135mm F3.5-5.6 R LM OIS WR Specifications

Camera Mount Type Fujifilm X mount
Construction 14 elements in 10 groups (including 3 aspherical element & 1 extra low disp.)
Focal Length f = 18-55mm (27.4-83.8mm 35MM EQV)
Angle of View 79.1°-28.4°
Max Aperture F2.8-F4.0
Min Aperture F22
Aperture Blades/Stop Size 7 (rounded diaphragm opening) 1/3 EV (19 stops)
Focus Range Wide 30cm – infinity / Tele: 45cm – infinity
Max Magnification 0.08-0.15x
Filter Size 58mm
Dimension (Diameter x Length) 2.6 x 2.8-3.9″ / 65 x 70.4-97.9mm
Weight 11.6 oz / 330g

Press Release:

Fujifilm launches its first weather resistant XF lens

Fujifilm Corporation (President: Shigehiro Nakajima) is proud to announce the release of its XF18-135mm high magnification, weather resistant, zoom lens. The XF18-135mm F3.5-5.6 R LM OIS WR will be available from July 2014.

This latest addition to the company’s line up of profession-grade lenses for X-series interchangeable-lens cameras covers a wide shooting range of 27mm wide-angle to 206mm telephoto equivalent*1. It has the world’s most advanced 5.0-stop image stabilisation technology*2 and features a dust-proof and waterproof structure with weather resistant sealing applied to more than 20 different areas of the lens.

*1 35mm film equivalent
*2 Complies with CIPA (Camera & Imaging Products Association) standards

Product features

Covering a wide shooting range, from 27mm wide-angle to 206mm telephoto*1

• The new XF18-135mm lens is suited to a variety of scene types and subject matters as it covers frequently used angles of view. These include wide-angle shooting, often used for landscapes and architecture with an excellent sense of perspective (27mm equivalent); a normal angle of view that naturally captures the image as it is (35mm, 40mm, 50mm equivalent); and telephoto, which allows you to zoom right in to capture portraits and sports scenes (85mm, 135mm, 200mm equivalent) with its 7.5x zoom.

• To achieve high descriptive performance with sharpness and rich contrast from the wide-angle to the telephoto, high-performance glass including 4 aspherical glass lenses and 2 ED glass lenses has been used. Multi-layer HT-EBC, which has high permeability (99.8%) and low reflectance (0.2%), is applied to the entire lens to effectively reduce lens flare and ghosting, which often occur in backlight conditions. Utilising the wide zoom range of the lens, there is more freedom in composition and selecting angles.

*1 35mm format equivalent

Fast autofocus (max. 0.1sec.)*2, silent operation

• The XF18-135mm F3.5-5.6 R LM OIS WR uses an inner focusing mechanism*3 for rapid autofocus speeds. This was engineered by making the focus lens lighter and installing a linear motor. When this lens is combined with an X-series camera body*4 which is compatible with phase detection AF, smooth photography is offered with faster AF.

• Linear motor technology which directly drives the focus lens creates low noise for silent operation when shooting movies.

*2 Complies with CIPA guidelines, internal measurement, during high performance mode, according to Fujifilm as of June 2014
*3 Method that moves relatively smaller lenses in the middle or at the end without moving the front which is composed of relatively larger lenses
*4 As of June 2014, “FUJIFILM X-T1” and “FUJIFILM X-E2”
*5 To ensure that autofocus performs as expected, download and install the latest version of the firmware for your camera.

The firmware will need to be downloaded from the following website and will be available from June 27th.

http://fujifilm.jp/support/digitalcamera/download/fw_table.html

World’s most advanced 5.0-stop image stabilisation function

• In order to achieve the world’s most advanced 5.0-stop image stabilisation performance, the ability to detect movement in the low-frequency band was improved, and an algorithm to accurately sense blur from the detected signal was developed. Correction performance was doubled in the low-speed shutter range. This helps to support a lightly-equipped shooting style without the use of a tripod.

• The newly adopted high-precision gyro sensor is installed with quartz oscillators which detect movement from high frequency to low frequency bandwidths.

Dust-proof, weather resistant structure

• A dust-proof, weatherproof structure with sealing applied to 20 different areas of the lens barrel is resistant to typical atmospheric changes that occur in a natural environment, such as sudden rain, dust, and splashes of water.

• In order to improve the feel when adjusting the zoom, a ventilator has been placed on the inside of the base of the lens barrel. The structure effectively prevents dust particles and moisture from getting into the lens to ensure smooth operation.

• Designed to be paired with the Fujifilm X-T1 and its dedicated vertical grip VG-XT1 which also have dust-proof and weather resistant bodies.

Light-weight and compact design for excellent portability

• The XF18-135mm lens offers a wide shooting range, advanced image stabilization, and a dust-proof, waterproof structure, all in a compact structure.

• When combined with the X-T1, the camera and lens weigh a mere 930g. This highly portable weather resistant kit offers much improved flexibility and wider photo opportunities to the photographer.

• The adoption of 4 aspherical lenses, each of which delivers the performance of multiple general spherical lenses together, has been used to achieve the lens’ extremely short optical length. With an easily maneuverable size and good holding balance with the total lens length, a comfortable shooting style is promised.

Fujifilm XF 18-135mm F3.5-5.6 R LM OIS WR Product Images

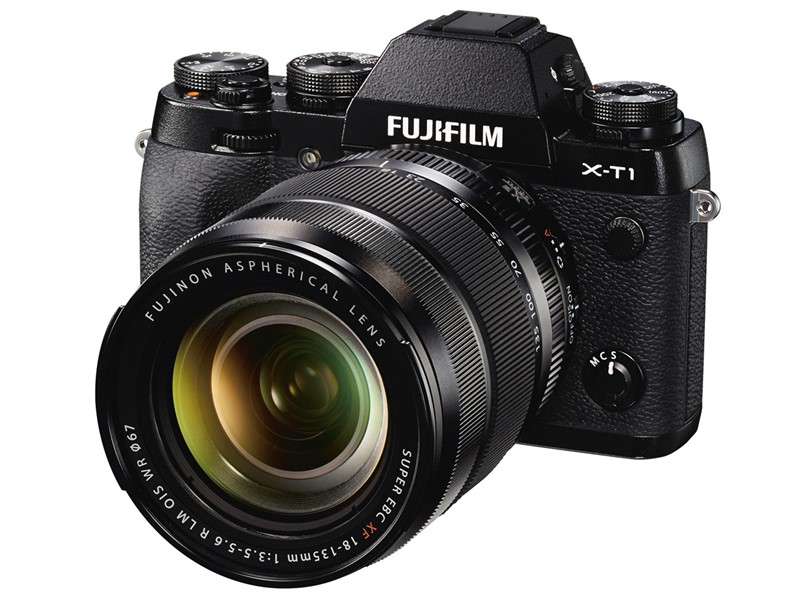

fujifilm-xf-18-135mm-f3-5-5-6-r-lm-ois-wr-02

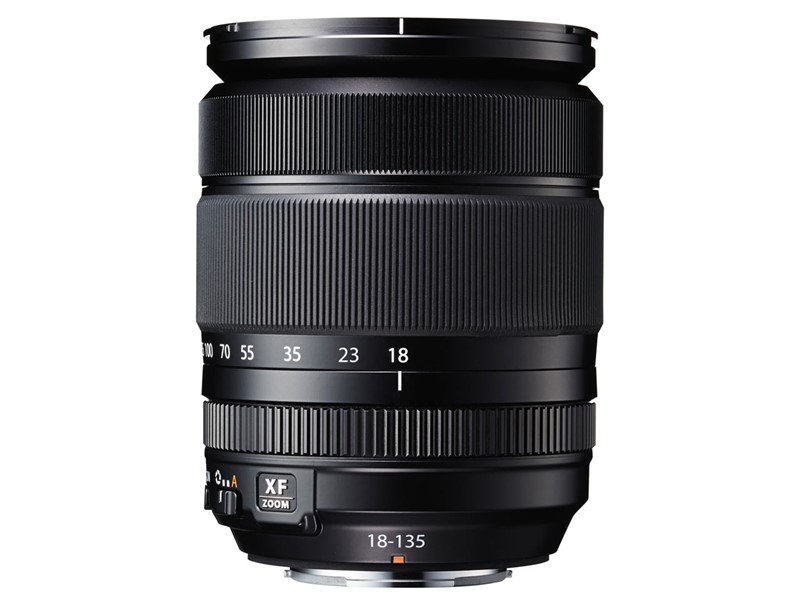

fujifilm-xf-18-135mm-f3-5-5-6-r-lm-ois-wr-01

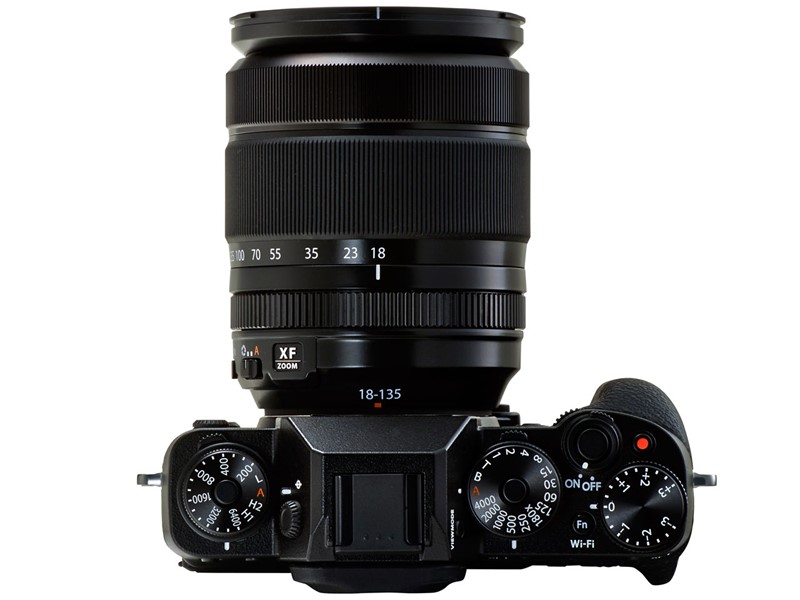

fujifilm-xf-18-135mm-f3-5-5-6-r-lm-ois-wr-03
