Tamron 16-300mm F/3.5-6.3 Di II VC PZD Lens Will Be Displayed at CP+ 2014

By on

Tamron is developing a new 16-300mm F/3.5-6.3 Di II VC PZD zoom lens for APS-C sized sensored DSLR cameras. A prototype of the lens will be on display at the Tamron booth at the CP+ 2014.

The 24-450mm equivalent ultrazoom lens is currently in development and comes with a petal-shaped lens hood. The Tamron 16-300mm F/3.5-6.3 Di II VC PZD lens features a Piezo Drive auto focus motor and Vibration Compensation technology (VC), a maximum reproduction ratio of 1:2.9, and a minimum focus distance of 39cm and a 67mm filter thread. The lens has a design of 19 elements in 15 groups.

The Tamron 16-300mm F/3.5-6.3 Di II VC PZD lens will be available for Canon, Nikon and Sony mounts. Pricing and availability yet to be announced.

Tamron 16-300mm F/3.5-6.3 Di II VC PZD Lens Will Be Displayed at CP+ 2014

Tamron is developing a cutting-edge high-power zoom lens, with expanded focal lengths at both wide-angle and telephoto ends of the zoom range, providing a zoom ratio of approximately 18.8X.

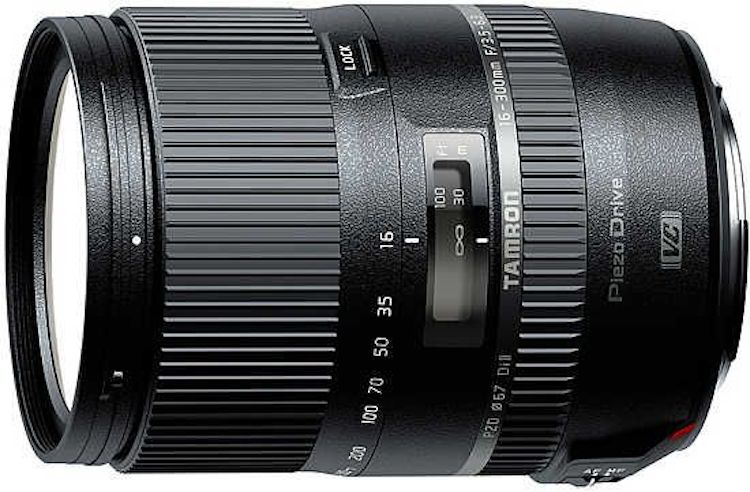

Tamron-16-300mm-F3.5-6.3 Di-II-VC-PZD

Tamron 16-300mm F/3.5-6.3 Di II VC PZD Lens Specs

  • Focal Length : 16-300mm
  • Maximum Aperture : F/ 3.5-6.3
  • Angle of View (diagonal) : 82°12′ – 5°20′
  • Lens Construction : 16 elements in 12 groups
  • Minimum Focus Distance : 0.39m
  • Maximum Magnification Ratio : 1:2.9 (at f=300mm: MFD 0.39m)
  • Filter Size : φ67mm
  • Maximum Diameter : φ75mm
  • Length* : 99.5mm
  • Weight : 540g
  • Diaphragm Blade Number : 7 (circular diaphragm)
  • Minimum Aperture : F/22-40
  • Standard Accessories : Flower-shaped lens hood
  • Compatible Mounts : Canon, Nikon, Sony

Tamron 16-300mm F/3.5-6.3 Di II VC PZD Lens Highlights

A further expansion of the imaging range. With a minimum focal length of 16mm (35mm film equivalent: 24.8mm) at the wide-angle end of the zoom range, and a maximum focal length of 300mm (35mm film equivalent: 465mm), this remarkable new lens provides a zoom ratio of approximately 18.8X.

Responding to requests from consumers who wanted to be able to photograph subjects with a wider viewing angle than is possible with conventional high-power zoom lenses, Tamron has begun developing a unique lens with a minimum focal length of 16mm. At the telephoto end, the maximum focal length has been increased to an impressive 300mm. Users of this new lens can enjoy unprecedented framing flexibility by easily adjusting the angle of view using the convenient zoom ring.

Superior, reliable image quality with a universal lens.

The lens construction features 16 elements in 12 groups. This includes three Molded-Glass Aspherical elements, one Hybrid Aspherical element, two LD (Low Dispersion) elements, one XR (Extra Refractive index) glass element, and one element of UXR (Ultra-Extra Refractive Index) glass, which has greater refractive index than XR. The full use of specialized glass elements in the design contributes to thorough compensation of optical aberrations. In addition, the use of the latest coating technology for suppressing reflections on lens element surfaces minimizes unwanted flare and ghosting and assures sharp, crisp, high-contrast images.

Using a new design approach to create an ultra-compact lens.

The latest optical technology has been used to provide an expanded zoom range (compared to the B008) at both the wide-angle and telephoto ends, without necessitating the use of an oversized lens body. By employing UXR glass (which helps to reduce the size of the front lens diameter), an optimized layout of the Molded-Glass Aspherical elements, and adopting a 5-lens-group zoom system approach to provide enhanced design flexibility, the new lens embodies the fusion of state-of-the-art optical design, sophisticated mechanical design, and high-precision lens manufacturing technology, thereby attaining a compact size, an unprecedented zoom range, and superior image quality.

A minimum focusing distance of just 0.39 meters supports an extensive range of macro photography capabilities.
The new lens provides a minimum focus distance of 0.39 m over the entire zoom range, with a maximum magnification ratio of 1:2.9. This makes it possible to get right up close to the subject of the photo to enjoy easy, stress-free macro photography.

PZD (Piezo Drive) delivers faster, quieter autofocus action.

The PZD (Piezo Drive)*1, an advanced standing-wave ultrasonic motor system, delivers faster, quieter, more precise AF action when the autofocus is engaged. There is enhanced support for contrast-detection AF capabilities, and focusing when in live-view mode has been made smoother. The new lens also features full-time manual focus, a function that was not provided by B008, making manual focusing more convenient.

Sharper images with VC (Vibration Compensation)

Tamron’s acclaimed VC (Vibration Compensation)*2 mechanism is incorporated into the new lens.*3 VC reduces image blur caused by camera shake to deliver significantly sharper images even when shooting handheld at long telephoto settings

Moisture-resistant construction for worry-free outdoor shooting.

Upgraded cosmetic design.

Tamron has upgraded the cosmetic design and finish of this lens to create a more sophisticated, high-end look in keeping with the demands of discerning DSLR users. Employing a sophisticated linear pattern rubber grip on the zoom and focus rings, and an elegant tungsten-silver name-brand ring, etc., this newly designed model accentuates its visceral presence with understated elegance and class.
