Canon EOS 650D / Rebel T4i DSLR Camera Features & Specifications

By on

Canon EOS 650D / Rebel T4i DSLR is Canon’s most sophisticated Rebel ever. Built to make advanced photography simple and fun, the Rebel T4i delivers phenomenal image quality, high performance, and fast, intuitive operation. This EOS Rebel amps up the speed with the powerful DIGIC 5 Image Processor that helps make high-speed continuous shooting of up to 5.0 fps possible great for capturing fast action. An 18.0 Megapixel CMOS sensor ensures that every image is shot in superb, high resolution; and an extended ISO range of 100 12800 gives photographers the opportunities to take the Rebel T4i into more shooting situations than ever before.

A 9-point all cross-type AF system (including a high-precision dual cross f/2.8 center point) delivers improved autofocus performance, and a new Hybrid CMOS AF System increases autofocus speed when shooting photos and video in Live View. For users interested in creating impressive videos, the Rebel T4i is ready to help you create your next masterpiece. Movie Servo AF provides continuous focus of moving subjects, so you never miss a moment.

canon-eos-650d-rebel-t4i

A built-in stereo microphone and manual audio level adjustment helps ensure that your audio will match the stunning quality of your video. First ever for an EOS Rebel, the Rebel T4i features a Vari-angle Touch Screen 3.0-inch Clear View LCD monitor II, which allows fast and intuitive camera operation. Add compatibility with Canon’s proven EF and EF-S lenses and a slew of EOS accessories, the Rebel T4i is an incredibly versatile tool for creating the images and videos you envision.

canon-eos-650d-rebel-t4i-01

Canon EOS 650D / Rebel T4i DSLR Camera Features

  • 18.0 Megapixel CMOS (APS-C) sensor, 14-bit A/D conversion, ISO 100 12800; expandable to 25600 (H) for shooting from bright to dim light and high performance DIGIC 5 Image Processor for exceptional image quality and speed.
  • High speed continuous shooting up to 5.0 fps allows you to capture all the action.
  • Improved autofocus performance with a 9-point all cross-type AF system (including a high-precision dual-cross f/2.8 center point), and new Hybrid CMOS AF increases autofocus speed when shooting photos and video in Live View.
  • Enhanced EOS Full HD Movie mode with Movie Servo AF for continuous focus tracking of moving subjects, manual exposure control and multi frame rates (1080: 30p (29.97) / 24p (23.976) / 25p, 720: 60p (59.94) / 50p, 480: 30p (29.97) / 25p), stereo microphone, manual audio level adjustment, and Video Snapshot with editing for video shooting options.

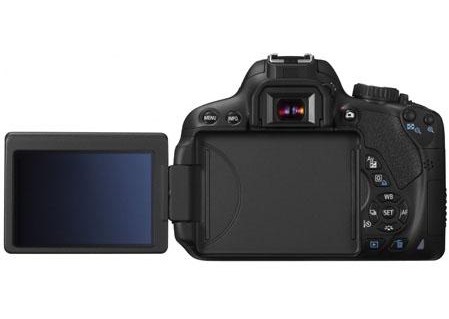

  • New Vari-angle Touch Screen 3.0-inch Clear View LCD monitor II (approximately 1,040,000 dots) with smudge-resistant coating features multi-touch operation and Touch AF for an easy and intuitive experience, flexible positioning, and clear viewing even when outdoors.
  • Scene Intelligent Auto Mode delivers expertly optimized photos and now offers improved scene detection for amazing results when shooting at night.
  • Expand your creativity with new advanced imaging features like Handheld Night Scene mode, HDR Backlight Control mode, and seven Creative Filters including newly added Art Bold Effect and Water Painting Effect.
  • Multi Shot Noise Reduction provides outstanding noise reduction while preserving precious detail at high ISO speeds.
  • Compatibility with SD/SDHC/SDXC memory cards, including new Ultra High Speed (UHS-I) cards.

Canon EOS 650D / Rebel T4i DSLR Technical Specifications

Type Digital, AF/AE single-lens reflex, camera with built-in flash
Recording Media SD card, SDHC card, SDXC memory card / Compatible with Ultra High Speed (UHS-I) and Eye-Fi Cards
Image Sensor Size 22.3 x 14.9mm (APS-C size)
Compatible Lenses Canon EF lenses including EF-S lenses (35mm-equivalent focal length is approx.1.6x the lens focal length)
Lens Mount Canon EF mount
Image Sensor Type: CMOS Sensor
Pixels: Effective pixels: Approx. 18.00 megapixels
Total pixels: Approx. 18.50 megapixels
Pixel Unit: 4.3 µm square
Aspect Ratio: 3:2 (Horizontal: Vertical)
Color Filter System: RGB primary color filters
Low-pass Filter: Fixed position in front of the CMOS sensor
Dust Deletion Feature Self Cleaning Sensor Unit:
Removes dust adhering to the low-pass filter. Self-cleaning executed automatically (taking approx. 2 sec.) when power is turned on or off. Manual execution also possible (taking approx. 5 sec.).
Dust Delete Data Dust Delete Data acquisition and appending: The coordinates of the dust adhering to the low-pass filter are detected by a test shot and appended to subsequent images.

The dust coordinate data appended to the image is used by the provided software to automatically erase the dust spots.
Manual cleaning

Recording Format Complies with Design rule for Camera File system 2.0 and Exif 2.30
Image Type Still: JPEG, RAW (14-bit, Canon original), RAW+JPEG
Video: MOV (Image data: H.264, Audio: Linear PCM)
Simultaneous Recording Large RAW and JPEG images are recorded simultaneously
File Size Large: Approx. 17.90 Megapixels (5,184 x 3,456)
Medium: Approx. 8.00 Megapixels (3,456 x 2,304)
Small 1: Approx. 4.50 Megapixels (2,592 x 1,728)
Small 2: Approx. 2.50 Megapixels (1920 x 1280)
Small 3: Approx. 350,000Pixels (720 x 480)
RAW: Approx. 17.90 Megapixels (5,184 x 3,456)
Color Space sRGB, Adobe RGB
Picture Style Auto, Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Defined 1-3
White Balance Auto, Daylight, Shade, Cloudy (Twilight and Sunset), Tungsten Light, White Fluorescent Light, Flash, Custom (Custom White Balance: Approx. 2,000° – 10,000° K)
Auto White Balance Auto white balance with the image sensor
Viewfinder Type Eye-level SLR (with fixed pentamirror)
Autofocus One-Shot AF
Predictive AI Servo AF
AI Focus AF
(Switches between One-Shot AF and AI Servo AF)
Manual Focus Yes
ISO Speed Manual setting range of ISO 100 12800, expansion to ISO 25600
Auto, ISO 100 6400 (in whole-stop increments)
In Creative Zone modes, the maximum ISO speed (ISO 400, 800, 1600, 3200, or 6400) for ISO Auto can be set.
With C.Fn-6-1 (Highlight tone priority), ISO 200 or higher will be set.
Shooting Mode Scene Intelligent Auto, Flash Off, Creative Auto, Landscape, Close-up, Sports, Night Portrait, HDR Backlight Control mode
Shutter Speeds 1/4000 to 1/60 sec., X-sync at 1/200 sec. (Scene Intelligent Auto)

1/4000 to 30 sec., bulb, X-sync at 1/200 sec. (Total shutter speed range. Available range varies by shooting mode.)
(Settable in 1/3- or 1/2-stop increments)

Built-in Flash Auto pop-up, retractable, built-in flash in the pentamirror
Remote Control Compatible with Remote Controller RC-6, RC-1, and RC-5
Remote control mode (via menu) for video shooting provided
You can start or stop video shooting immediately with the wireless remote control’s 2-sec. delay mode (operates as immediate start/stop)
Still photo shooting is possible with the wireless remote control’s immediate shutter-release mode
External Flash Flash Metering: E-TTL II autoflash (evaluative flash metering and average flash metering), FE Lock

Flash Exposure Compensation: ±2 stops in 1/3- or 1/2-stop increments

Continuous Shooting Speed (Approx.) Max. Approx. 5.0 fps (with One-Shot AF or AI SERVO AF)
Same as with Battery Grip BG-E8 loaded with size-AA/LR6 alkaline batteries.
Maximum Burst Based on 8GB memory Card:
JPEG Large/Fine: Approx. 22 Shots
RAW: Approx. 6 Shots
RAW+JPEG Large/Fine: 3 Shots

Based on UHS-I memory card:
JPEG Large/Fine: Approx. 30 Shots
RAW: Approx. 6 Shots
RAW + JPEG Large/Fine: 3 Shots

Video File Format MOV (Image data: H.264; audio: Linear PCM – Stereo)
Video Recording File Size Full HD
1920 x 1080: 330 MB/min.

HD
1280 x 720: 330 MB/min.

SD
640 x 480: 82.5 MB/min.

Frame Rates 1920 x 1080 (Full HD): 30p (29.97) / 24p (23.976) / 25p
1280 x 720 (HD): 60p (59.94) / 50p
640 x 480 (SD): 30p (29.97) / 25p
ISO Range Auto ISO range: ISO 100-6400
Manual ISO range: ISO 100-6400, H12800
If highlight tone priority is set, automatically set within ISO 200 or higher
Shooting Time (8GB memory) 1920 x 1080
30 fps: Approx. 22 min.
25 fps: Approx. 22 min.
24 fps: Approx. 22 min. 1280 x 720
60 fps: 22 min.
50 fps: 22 min.

640 x 480
30 fps: 1 hr. 32 min.
25 fps: 1 hr. 32 min.

LCD Monitor Type: TFT color, liquid-crystal monitor with Touch Panel LCD (capacitive type)
Monitor Size: 3.0-inches (Screen aspect ratio of 3:2) Dots: Approx: 1,040,000 dots
Coverage: Viewing angle: 170º (vertically and horizontally)
Brightness Adjustment: Auto: Brightness adjusted automatically by the light sensor, Manual: 7 levels provided
Coating: Anti-smudge coating
Interface Languages English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese
USB Terminal For personal computer communication and direct printing (USB 2.0 Hi-Speed)
Audio/Video OUT Terminal Video OUT terminal: NTSC/PAL selectable
mini-HDMI OUT terminal
Power One Battery Pack LP-E8
With the AC Adapter Kit ACK-E8, AC power is possible.
With the BG-E8, two battery packs (LP-E8) can be used. Or six AA-sized/LR6 batteries can be used
Working Temperature Range 32-104°F / 0-40°C
Dimensions WxHxD 5.2 x 3.9 x 3.1″ / 133.1 x 99.8 x 78.8mm
Weight 18.3 oz. / 520 g (body only)
